Diesel Engine Drive Mobile Garden Tree Branch Crushing Machine
Our company’s latest garden tree branch crushing machine fills the blank of this kind of garden machinery in China. At present, most of the branch shredder used in the gardening sector in China is imported from abroad and is expensive. The garden tree branch crushing machine produced by our company has good crushing performance, high work efficiency, convenient use, and safety and reliability. This product is at the same level as foreign products and reaches the domestic advanced level.
Garden tree branch crushing machine application
The garden tree branch crushing machine is suitable for gardening, forestry, highway tree maintenance, parks, golf courses, and other departments. It is mainly used for crushing various branches cut off by pruning trees, and can be used as covers, garden beds, organic fertilizers, and food after crushing, biomass and biomass power generation can also be used to produce high-density boards, particle board, paper industry, etc. After being crushed, it can be sprayed directly into the transport vehicle. Its transport volume is 1/10 of the original branch’s traffic volume. This garden tree branch crushing machine can crush the branches at any time and place and is easy to move.
Garden tree branch crushing machine parameter
| Model | Power | Diesel Model | Diesel Start Mode | Fuel Consumption | Diameter | Capacity | Rotating Speed | Walking Form |
| TYSJFS-570 | 22kw | JL 4100(Booster) | Electric Start | 6L/h | ≤150mm | 1500kg/h | 1500r/mim | Trailer |
| TYSJFS -670 | 30kw | 4105 | Electric Start | 8L/h | ≤200mm | 2500kg/h | 1500r/mim | Trailer |
| TYSJFS -770 | 45kw | JL 4105(Booster) | Electric Start | 10L/h | ≤230mm | 3500kg/h | 1500r/mim | Trailer |
| TYSJFS -870 | 55kw | 6105 | Electric Start | 15L/h | ≤250mm | 4500kg/h | 1500r/mim | Trailer |
| TYSJFS -970 | 75kw | JL 6105(Booster) | Electric Start | 18L/h | ≤300mm | 5500kg/h | 1500r/mim | Trailer
|
Garden tree branch crushing machine structure
garden tree branch crushing machine mainly consists of a power section, a body, a feeding mechanism, and a hydraulic system.
- The power part; the local power part is composed of diesel engine power, belt, and clutch.
- When the diesel engine starts, the clutch needs to be turned to an idle state, and load after the diesel engine runs well.
- The body consists of a series of components such as a chassis, a crushing chamber, a bearing chamber, and a traction section.
- After the frame is welded with a thick profile, it is aged and finally boring-milled. Not only increases the seat strength but also guarantees the bearing seat assembly accuracy.
- Rotor; rotor shaft and flying knife are made of 45 steel after processing. After the assembly is completed, a dynamic balance test is performed to ensure the overall stability of the entire machine during system operation.
- Feeding mechanism; the feeding mechanism consists of an adjustable toothed feed roller and a hydraulic motor.
Product Tags:
|
|

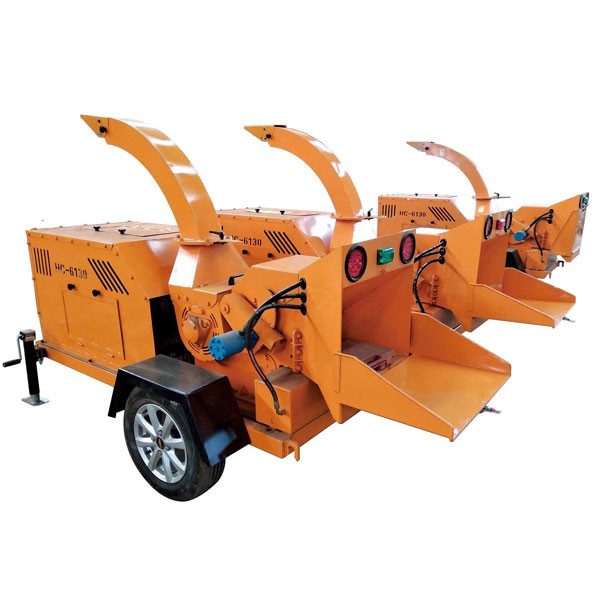

Diesel Mobile Tree Branch Garden Wood Crushing Machine Images
|
